Description
Basic Info.

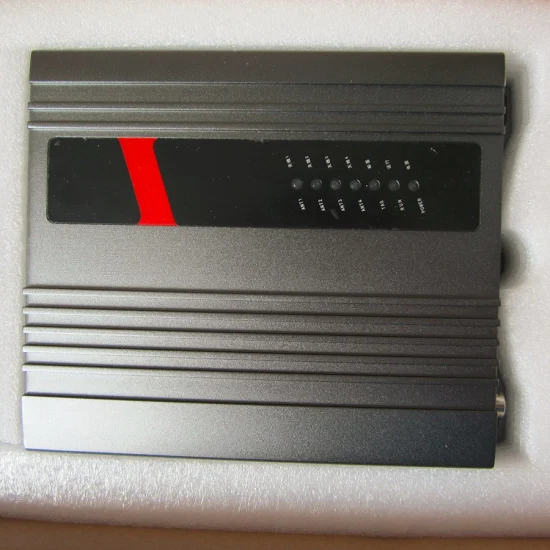

Model NO: HR-RFID401
Type: UHF RFID Reader
Interface: RS485, RS232, Wiegand, WiFi, Tcpip
Reading Distance: Depend on Antennas
Dimension: 230*170*40mm
Net Weight: 1280g
Protocol: EPC, Class1, G2, ISO18000-6c
Frequency: 902~928MHz Frequency Band
Power: 9V
Work Mode: Auto-Running, Answer, Trigger and Real-Time-Invent
Free Software: Dll, Sdk, Memo
Features
| Support Protocol | Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag |
| Frequency | 902~928MHz frequency band(frequency customization optional) |
| Transmission Mode | FHSS or Fix Frequency transmission |
| Power | RF output power up to 30dbm(adjustable) |
| Antenna Port | 4 TNC antenna port |
| Work Mode | Support auto-running, answer and trigger work mode |
| Read Area | Support EPC and TID inventory |
| Power Supply | Low power dissipation with single +9 DC power supply |
| Support Interface | Support RS232, RS485, TCPIP with other interface optional |
| Accessories | Built-in LED, Buzzer, GPIO and Relay |
| Design | High reliability design |
Product Applications
1.Logistics& warehouse management
2.Intelligent parking management
3.Production line management
4.Product counterfeit inspection
5.Other fields: Library management, school management, asset management, access control, etc.
